Dashboard
Home
The Home screen is the first screen displayed when you successfully log inlog in to the mobile application.
The Home screen gives an overview of the account balance and asset distribution, as well as application and navigational controls.
The top panel shows the overall balance of funds in fiat currency. In Cold-driven mode, the balance is based on coin values set in the Cold Vault. When the system runs in MPC-driven mode, the coin values originate with the MPC. The coins' distribution between the MPC, Cold Vault, and Cashbox is also shown.
The bottom Currency composition panel scrolls vertically and displays the amounts of each active currency in the uMPC, Impenetrable Vault and Proxy Vault(Cashbox).
The image above is from the iOS app which has the Dashboard and Wallets tabs at the top of the screen. These tabs are not yet available in the Android version, which displays the Dashboard information. For more details, see Wallet in the iOS appWallet in the iOS app.
Alignment of the Android app is planned for future releases.
Application Controls

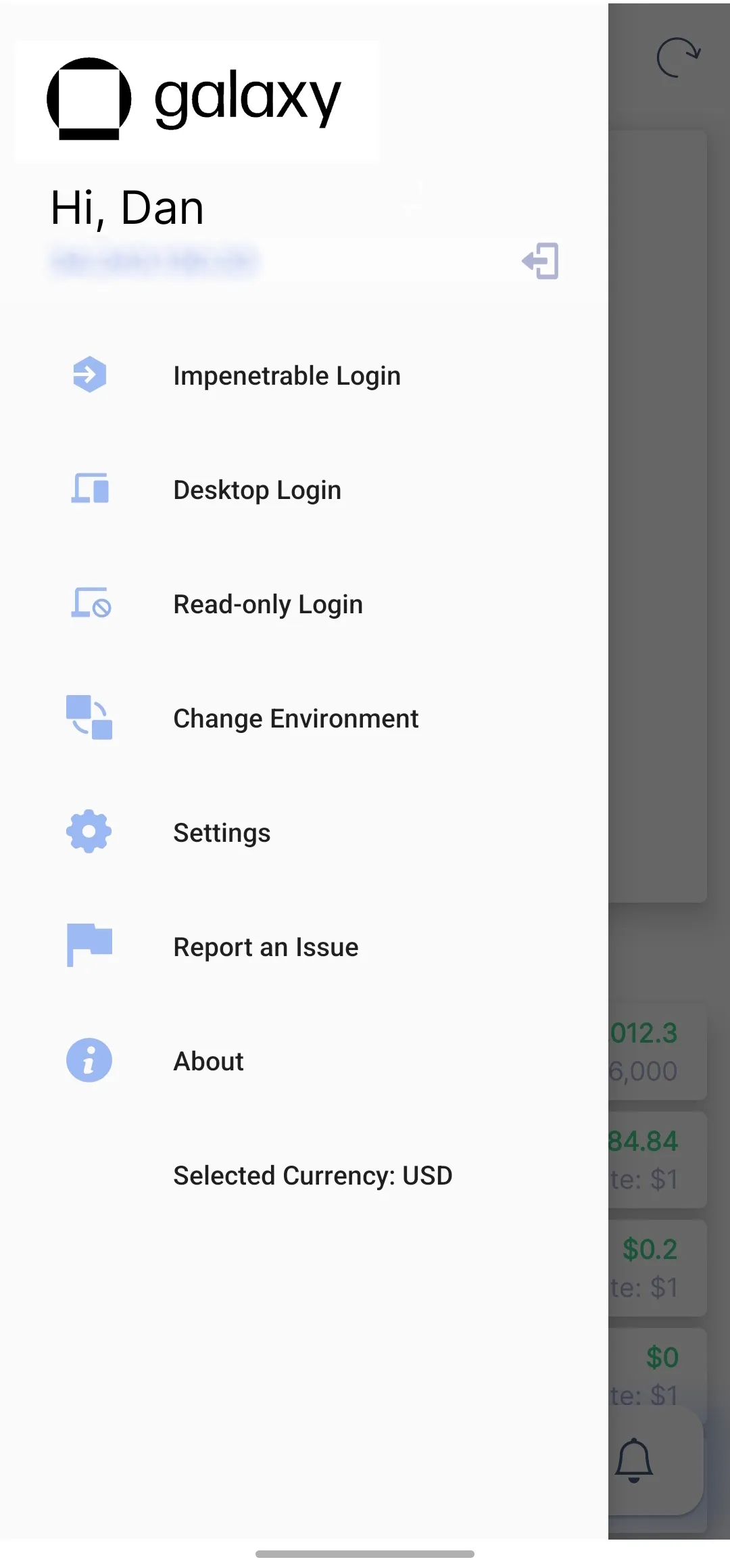

Touching the hamburger menu at the top left opens the application controls sidebar. From top to bottom, this menu contains:
- User and App Info: This displays the logged in user's name and the IP address of the MPC. This IP address is set via the MPC Settings area of the Cold Vault. Touch the Exit Icon to log out of the mobile app.
- Impenetrable Login: This activates a QR scanning mode for logging in to the Impenetrable Vault. See logging in to the Cold Vault for details.
- Desktop Login: This activates a QR scanning mode for logging in to the Desktop app. See Logging in to the Desktop app for details.
- Read-only Login: This activates a QR scanning mode for logging in to the Desktop app with read only settings.
- Change Environments: If you have access to more than one system, use this button to change which system your mobile app is connected to.
- Settings: Use the settings button to access the mobile app settings. Here you can:
- Add an additional password for added app security
- Report an issue: Send a bug report via email to the app support team.
- About: Tap this button to view the app's software version. This information is useful when troubleshooting issues with our support team
At the bottom of the Application Controls panel is a note reminding you of which fiat currency the system is configured for.
Navigation Controls
Use the five buttons at the bottom navigation bar to move between different screens of the app. The navigation controls are available on all screens of the app, except the New Transactions area; to navigate out of the New Transactions area, use the Cancel button.
The five navigation buttons are: Home, Contact List, New Transactions, Activity, Notifications
From left to right, the navigation buttons lead to:
- Home: The first screen of the app, where the account balance is displayed.
- Contact List: The screen shows a list of all contacts that can be used for transactions. For more details, see Contact list in the mobile appContact list in the mobile app.
- New Transactions: This screen is used to send money out from accounts/wallets in the system. All transactions are checked against the configured policies. You cannot send a transaction without first establishing appropriate user permissions and limits. For more details, see Send a transaction from the mobile appSend a transaction from the mobile app
- Activity: This screen shows all past and pending transactions. For more details, see Activity and NotificationsActivity and Notifications.
- Notifications: This screen shows all notifications on the system. For more details, see Activity and NotificationsActivity and Notifications.
