Custody Ratio Dashboard
The Custody Ratio Dashboard shows the user the differences between the registered values of coins stored on the Impenetrable Vault and the values on the uMPC, as recognized by the blockchain. The Blockchain is checked for the values using the addresses for each coin and wallet. The dashboard shows the breakdown of currency stored in each vault type.
The dashboard has two sections: Account balance and Currency information
- The Account balance that shows a breakdown of the account according to the vault the currencies are stored in.
- The Currency information shows the detailed breakdown of the vault values of each currency in the account and the proportional
The Currency section has two tabs: Currency and Vault Sync.

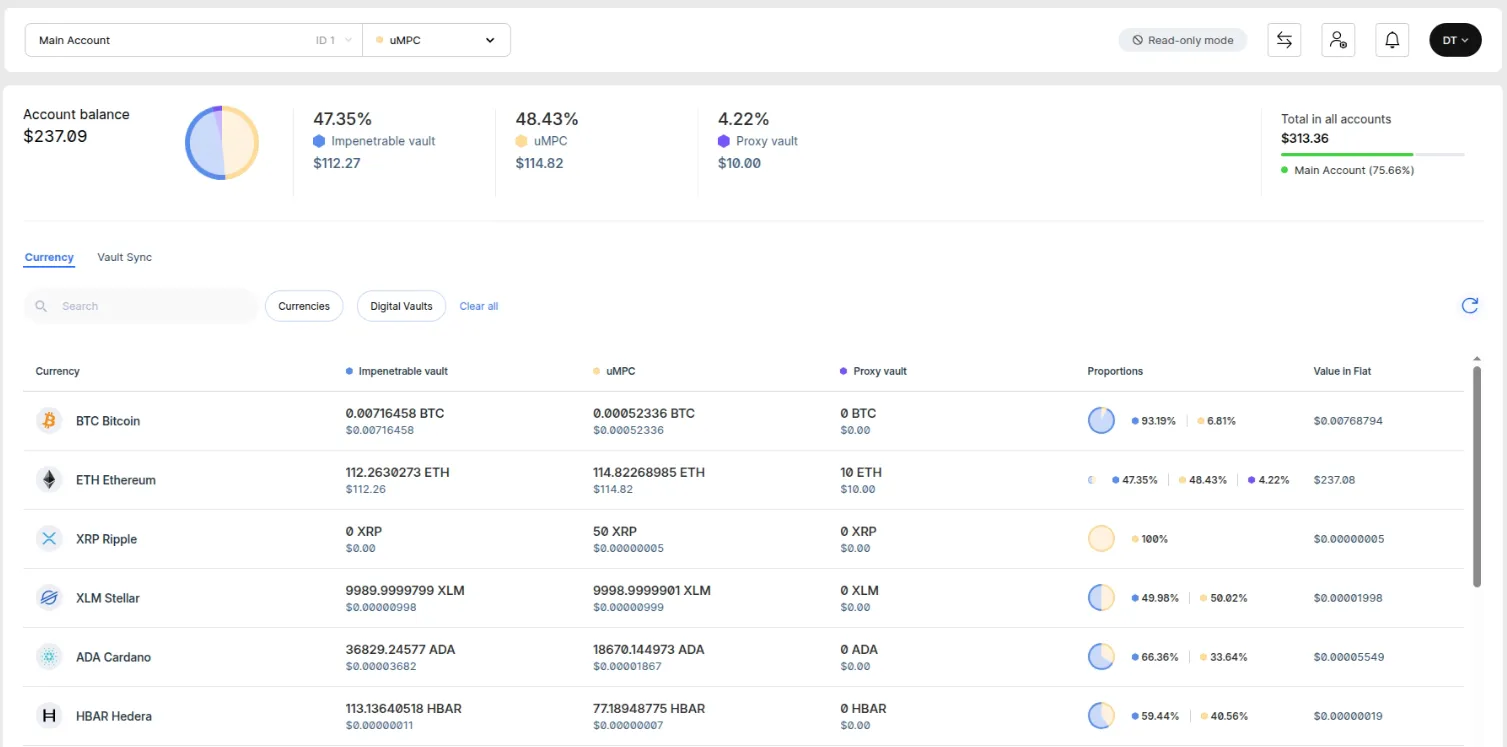

The Currency tab shows the division of each currency between the Impenetrable, uMPC and Proxy vaults. The proportions of each are also shown in a pie chart and number form. This presentation helps organizations that must keep a minimum percentage of their currency in the Impenetrable vault to remain within financial rules.

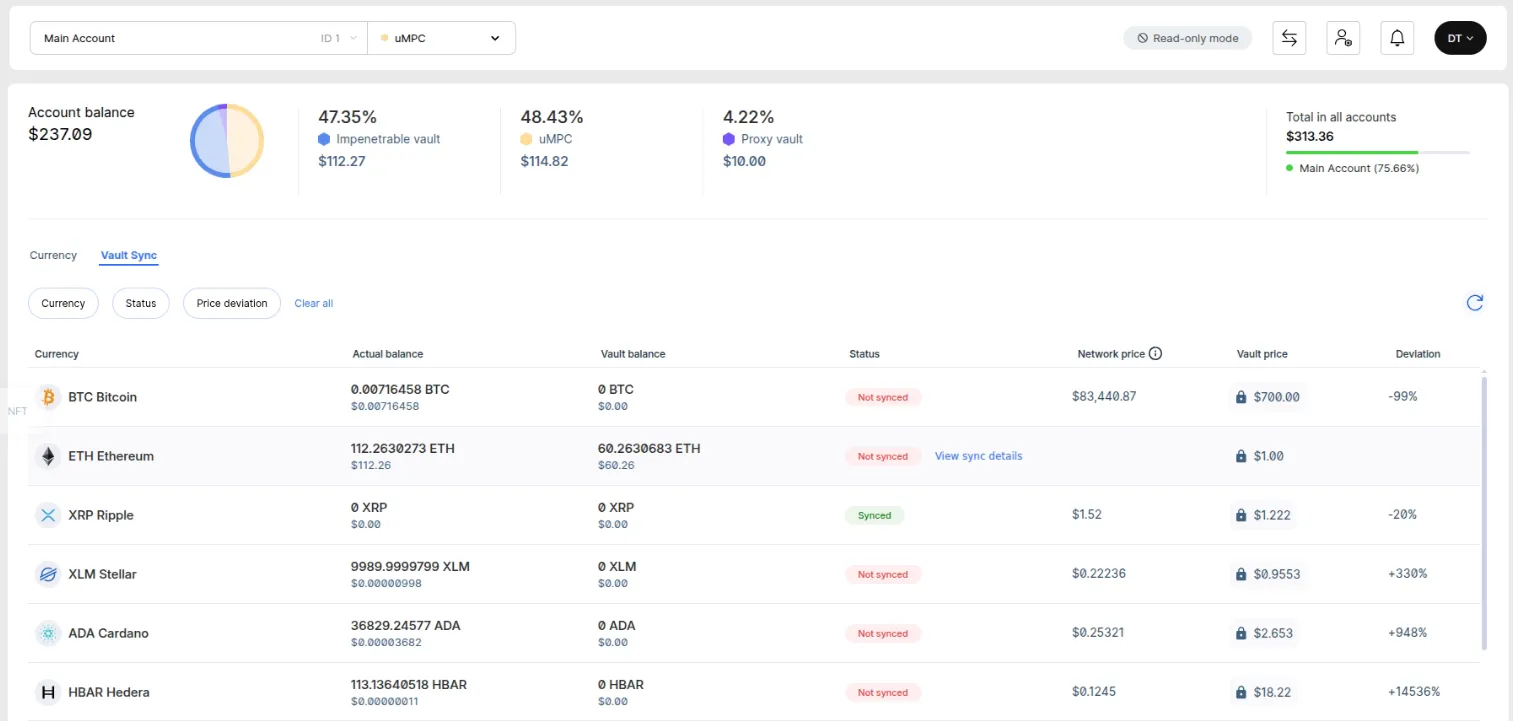

The Vault Sync tab shows the latest state of each account currency and any discrepancies between the on chain balance for a currency and the balance listed in the Impenetrable Vault. These differences come about when transactions that have taken place on the blockchain have not been updated to the Impenetrable Vault. Or when a Sync has not been performed for a while.
The dashboard shows a set of filters to assess the data, either by currency, status or the Price deviation, most significant is the Price deviation filter.
Price deviation shows the percentage difference between the values listed in the Impenetrable Vault and on the blockchain. Depending on your needs, you may wish to sync currencies that have higher or lower differences. The filter therefore has options for deviations greater or less than a specific amount, i.e. <25%, or >50%.
Sync a currency
When the currency data is up to date the status is Synced, and Not synced when the data is out of date.
Depending on the currency, there might be a different way to update the data on the Impenetrable vault. In the Status column for each currency the View sync details button appears when hovering over Not synced.

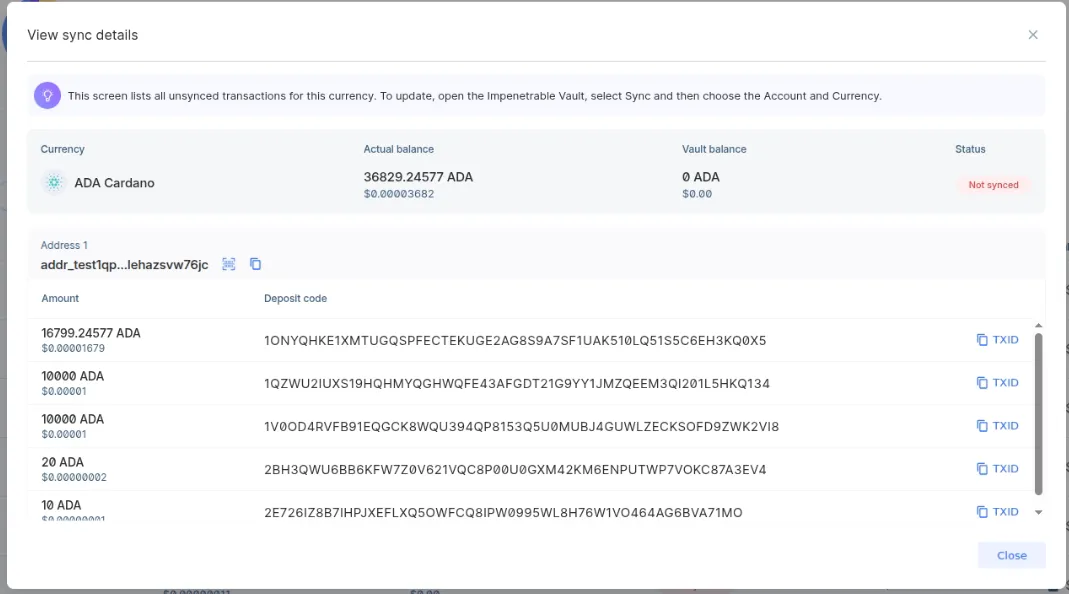

Selecting View sync details opens a pop up window that explains how to update the currency on the Impenetrable vault. This may include updating the currency value or using the Sync button to update transactions for a chosen currency.
To use the Impenetrable vault Sync button, see Synchronizing the Impenetrable Vault.
